• Country
• United States of America (USA)

• Manufacturer / Brand
• Carver Corporation; Lynnwood (WA)

• Year
• 1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164948

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: TX-11 - Carver Corporation; Lynnwood

• Shape
• Rack

• Dimensions (WHD)
• 17 x 3.5 x 12.5 inch / 432 x 89 x 318 mm

• Notes

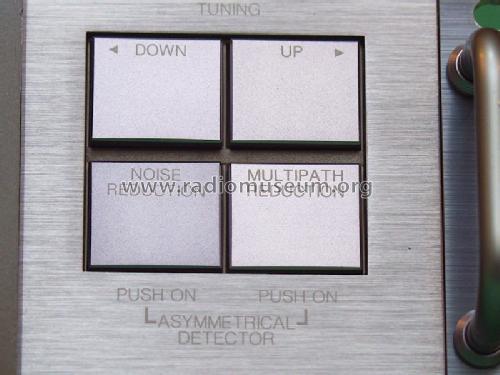

• Carver TX-11 Asymmetrical Charge Coupled FM Detector:
  A significant design/performance advance at the time, primarily due to use of a Charge Coupled Device (CCD) as a detector. Products uses a mix of integrated circuits and transistors. Direct Phase Locked Loop IF oscillator/mixer/detector. Digitally synthesized oscillator (tuning) with preset buttons. The design set new record for adjacent channel and spurious signal reduction. Special design feature significantly reduced multi-path signal distortion. FM broadcast band only (no AM broadcast or shortwave bands).

• Net weight (2.2 lb = 1 kg)
• 11 lb 4 oz (11.25 lb) / 5.108 kg

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Stephen Kangas. See "Data change" for further contributors.
