- Country
- United States of America (USA)
- Manufacturer / Brand
- Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 35144
-
- alternative name: Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 262,5 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org

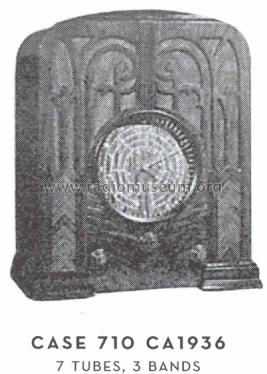

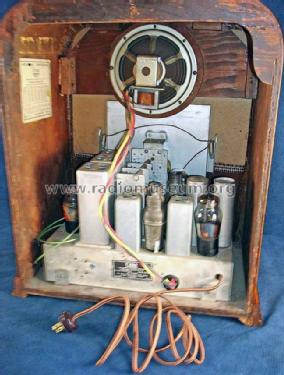

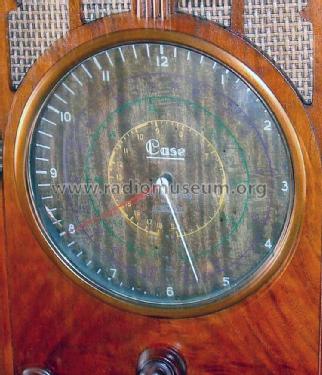

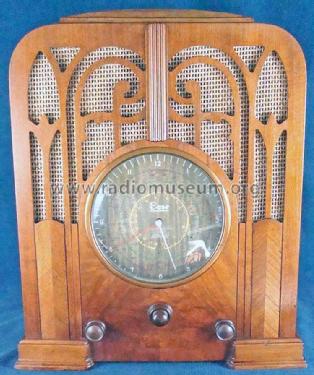

- Model: Case 710 Ch= 17 - Apex Electric, Pool; Chicago;
- Shape
- Console with any shape - in general
- Notes
- 6" or 10" speaker.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Cathedral & Tombstone Radios (page 70.)
- Literature/Schematics (1)
- Table Top Radios Vol. 4 Stein 2003 (page 58.)
