LCD Colour Television TV-880N

• Country
• Japan

• Manufacturer / Brand
• CASIO Computer Co., Ltd.; Tokyo

• Year
• 1999

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 207497

• Picture

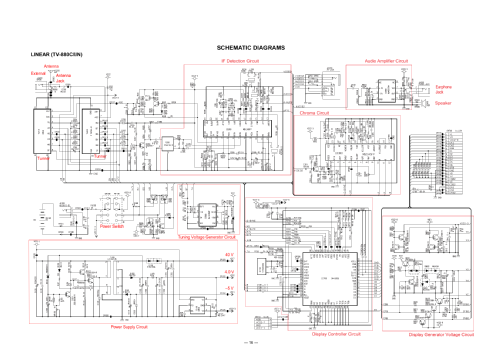

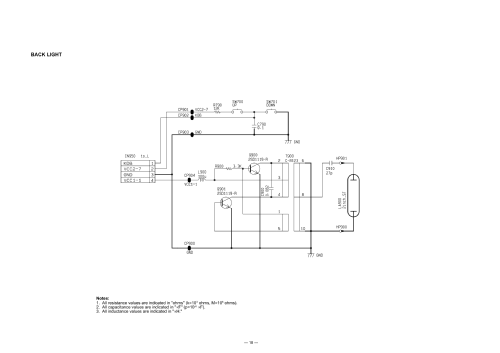

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Batteries / addl. power jack / 4 × 1,5; 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.8 cm = 1.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: LCD Colour Television TV-880N - CASIO Computer Co., Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 81 x 130 x 34 mm / 3.2 x 5.1 x 1.3 inch

• Notes
• VHF-UHF, PAL, B/G,H, CCIR. Made in Malaysia.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Price in first year of sale
• 199.00 DM

• Source of data
• - - Data from my own collection

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
