LCD Television/Radio EV-2500 B, C, I, N

• Country
• Japan

• Manufacturer / Brand
• CASIO Computer Co., Ltd.; Tokyo

• Year
• 1995 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 283187

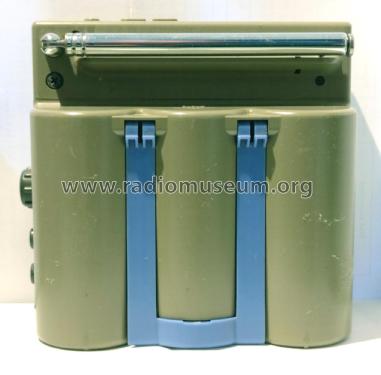

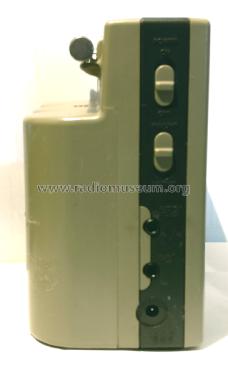

• Picture

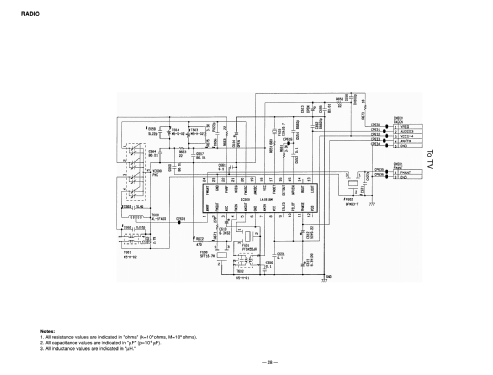

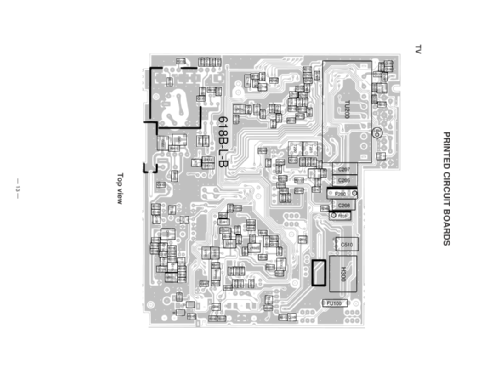

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Batteries / addl. power jack / LR20: 3 x 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: LCD Television/Radio EV-2500 B, C, I, N - CASIO Computer Co., Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 125 x 113 x 67 mm / 4.9 x 4.4 x 2.6 inch

• Notes

• LCD-Farbfernseher mit UKW/MW-Radio mit folgenden Eigenschaften:
  - 60cm dreh- und schwenkbare Teleskopantenne,
  - 2,5" TFT aktive hochauflösendes 220 x 279 Matrix-Display mit
     Hintergrundbeleuchtung,
  - Abstimmtasten Auf / Ab,
  - Beleuchtungstaste,
  - Lautstärkeregler
  - Helligkeitsregler,
  - Radio Abstimmung,
  - Bereichswahlschalter FM/UHF-AM/VHF,
  - 3,5mm Ohrhöreranschluss,
  - 3,5mm A/V-Anschluss,
  - 3,5mm externen Antennenanschluss (nur Modell C)
  - DC Einspeisebuchse,
  - Aufstellbügel,
  - Abdeckschieber Radio/TV,
  - Ferritstabantenne für MW.

  Empfangsbereiche:
  UHF: Kanal 21 - 69,
  VHF: Kanal 2 - 12 (Modelle C und N)
           Kanal A - H2 (Modell I)

  US-Channel-Standard M/M, NTSC (Modell B)

  UKW: 88 - 108 MHz,
  MW:  530 - 1710 kHz.

  Leistungsaufnahme 3,5W.

  Made in Japan and Malaysia.

• Net weight (2.2 lb = 1 kg)
• 0.360 kg / 0 lb 12.7 oz (0.793 lb)

• Mentioned in
• -- Original-techn. papers. (Service manual dated 1995)

• Author
• Model page created by Holger Struthoff. See "Data change" for further contributors.
