• Country
• Japan

• Manufacturer / Brand
• CBC Charles Brown (Browni, Magnon, Belair); Tokyo

• Year
• 1970 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 339444

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / AC 200-240 / D: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

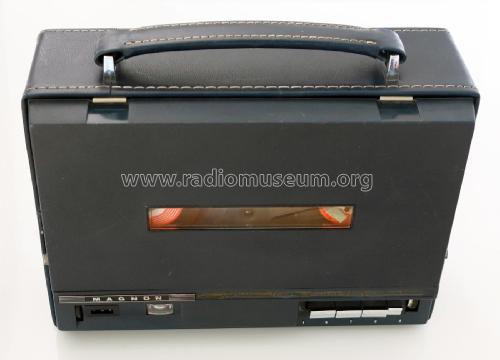

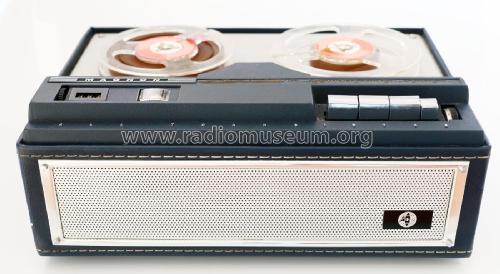

• Model: Magnon TR-1001 - CBC Charles Brown Browni,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 100 x 220 mm / 11 x 3.9 x 8.7 inch

• Notes

• Double track; tape speed: 9,5 / 4,5 cm/sec (3,75 / 1,87 ips).

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Danko Tkalec. See "Data change" for further contributors.
