• Country
• United States of America (USA)

• Manufacturer / Brand
• CBS-Columbia Inc.; New York, NY

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89671

• • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

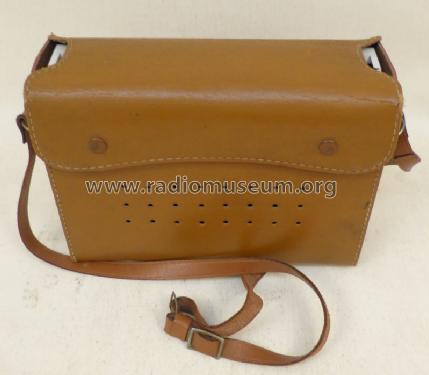

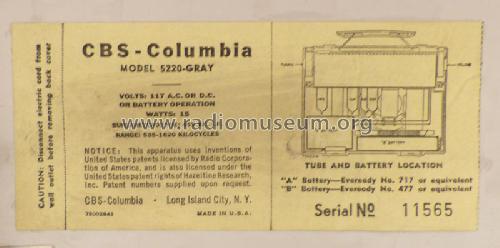

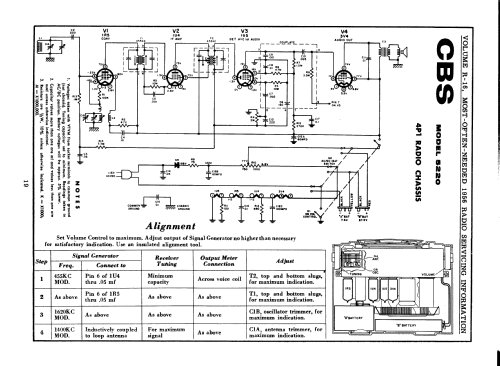

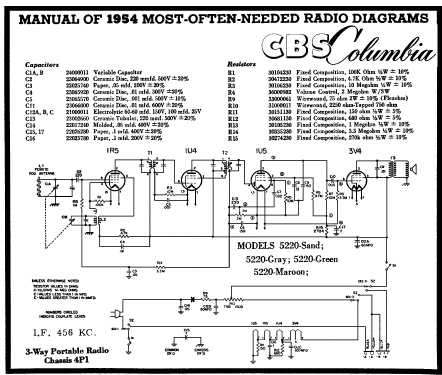

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 110-120 / 67.5 & 7.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 5220 Ch= 4P1 - CBS-Columbia Inc.; New York,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 190 x 70 mm / 9.4 x 7.5 x 2.8 inch

• Notes
• The CBS-Columbia model 5220 with chassis 4P1 (Photofact Date 12-54, set 261, folder 5) is a three power portable AM superheterodyne receiver with ferrite antenna and selenium rectifier. The model 5220 was available in color Sand, Maroon, Gray and Green.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 14, 1954

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-54, set 261, folder 5)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
