23C59 Ch= 921-94
CBS-Columbia Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 268245
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

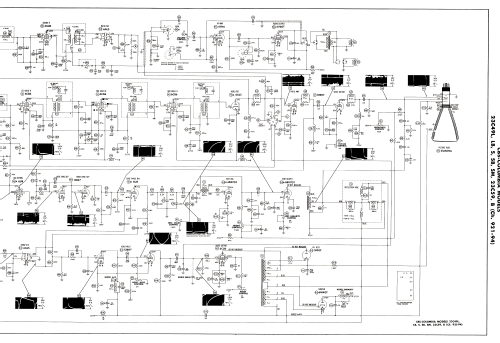

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6BQ7A 6J6 6CB6 6CB6 6CB6 6AL5 12BH7 6U8 6AU6 6AL5 6AV6 6V6GT 12BZ7 6BX7GT 6AL5 12BH7 6CU7 6W4GT 1B3GT 5AW4 21AMP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 23C59 Ch= 921-94 - CBS-Columbia Inc.; New York,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
CBS-Columbia model 23C59 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.Equipped with chassis 921-94, VHF tuner PC541497 and picture tube 21AMP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 292 Folder 3 dated 10-55)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 346 Folder 1 dated 2-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 423 models, 246 with images and 381 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from CBS-Columbia Inc.; New York, NY
