- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 284240
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

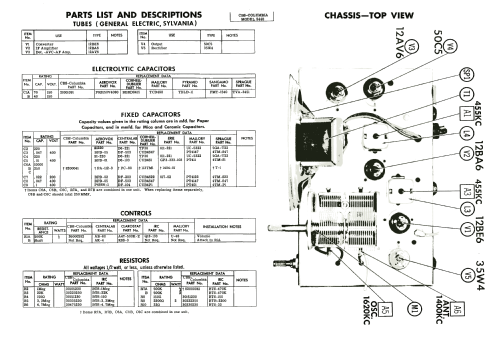

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 cycle 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 5440 - CBS-Columbia Inc.; New York,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
AC Operated AM Superheterodyne Receiver With Electric Clock.
- Literature/Schematics (1)

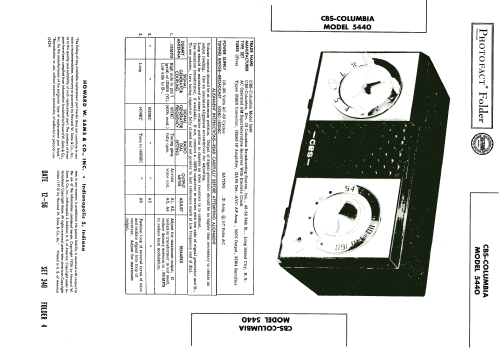

- Photofact Folder, Howard W. SAMS (Set 340 Folder 4 dated 12-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
