• Country
• United States of America (USA)

• Manufacturer / Brand
• CBS-Columbia Inc.; New York, NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139875

• • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OC71 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

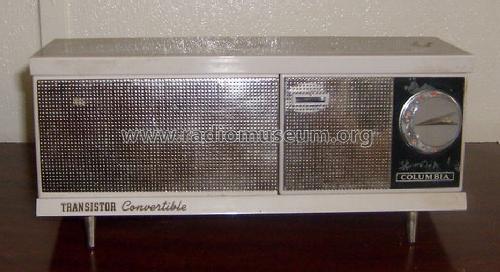

• Model: 610G - CBS-Columbia Inc.; New York,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Sams photofact set 504 folder 9 date 10-60 features the CBS models 610G and 610R as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 504 folder 9 date 10-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
