- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1959
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 151961
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

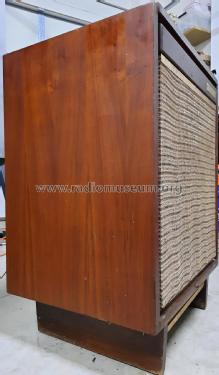

- Model: 680 - CBS-Columbia Inc.; New York,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 20 x 29 x 16.5 inch / 508 x 737 x 419 mm
- Notes
- The CBS-Columbia Model 680 is an AC operated 5 Tube Stereo Amplifier with 4 Speed Automatic Record Changer.
Colors available: Mahogany, Blond and Walnut.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-59, Set 455, Folder 4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
