• Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 140070
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

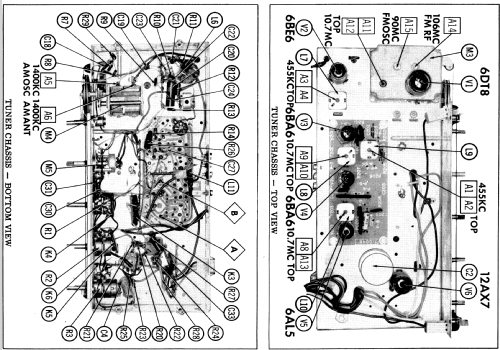

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: C1158M - CBS-Columbia Inc.; New York,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Sams photofact set 501 folder 5 date 10-60 features the CBS models C1158C, C1158M, C1158W, C1166B, C1166M and C1166W as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
