- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 149082
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 6 Loudspeakers
- from Radiomuseum.org
- Model: C1168W - CBS-Columbia Inc.; New York,
- Notes

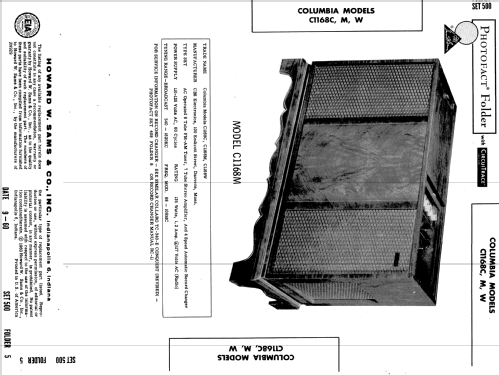

- AC operated AM - FM tuner with stereo amplifier and 4 speed automatic record changer. Sams photofact set 500 folder 5 date 9-60 features the CBS Models C1168C, C1168M and C1168W as the same schematic.
