C-1148W
CBS-Columbia Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1959 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 139859
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

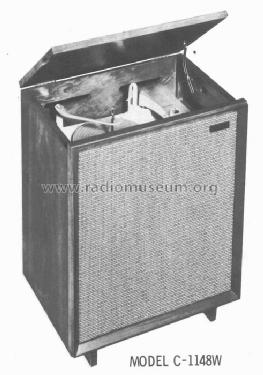

- Model: C-1148W - CBS-Columbia Inc.; New York,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes

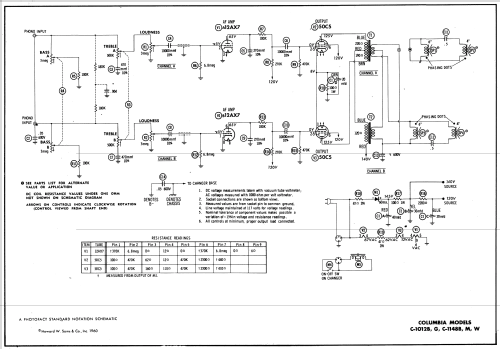

- AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 503 folder 7 date 10-60 features the CBS models C-1012B, C-1012G, C-1148B, C-1148M and C-1148W as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 503 folder 7 date 10-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
