U22TK321 Ch= 1606
CBS-Columbia Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 338128
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

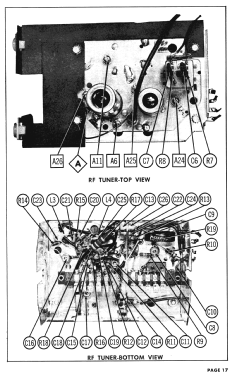

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 2AF4A 4BZ7 5U8 3CB6 3CB6 3CB6 12BY7A 3AU6 3BN6 12L6GT 6SN7GT 12BH7A 6SN7GT 12CU6 12AX4GT 1B3GT 21AUP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: U22TK321 Ch= 1606 - CBS-Columbia Inc.; New York,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
CBS Columbia model U22TK321 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 1606, VHF-tuner 69000692, UHF-tuner
69000701 and picture tube 21AUP4A.
- Literature/Schematics (1)

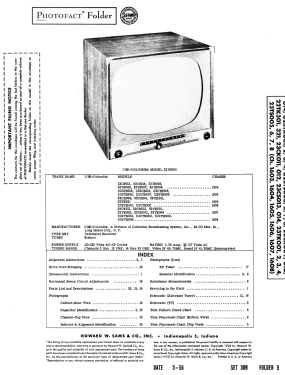

- Photofact Folder, Howard W. SAMS (Set 309 Folder 5 dated 3-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
