T201 Ch= 216
CBS-Columbia Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81486
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records
SAMS as reference picture.

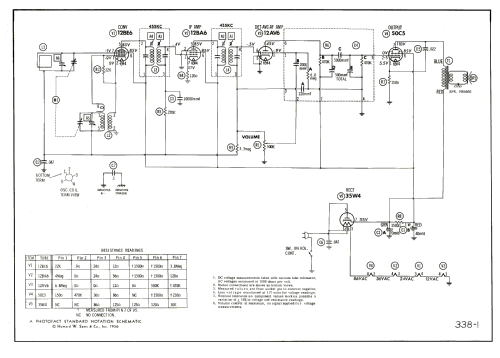

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T201 Ch= 216 - CBS-Columbia Inc.; New York,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 9.5 x 6 x 6.5 inch / 241 x 152 x 165 mm
- Notes
- The CBS-Columbia models T200, T201, T202, T203 and T204 use the chassis 216 (Photofact Date 11-56, set 338, folder 1). They are AC-DC operated AM superheterodyne receivers with a built in loop antenna. We believe that these models represent only different colors. The T200 is in any case in Green and the T204 in "dark brownish pink".
- Source of data
- Beitman Radio Diagrams, Vol. 16, 1956
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Photofact Date 11-56, set 338, folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
