Amplificador KA2000A

CCE - Indústria e Comércio de Componentes Eletrônicos (Kenwood); São Paulo

Data
Forum
Pictures
Collections

  • Year
  • 1975 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 280229

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 36 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Amplificador KA2000A - CCE - Indústria e Comércio de
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 264 x 112 x 235 mm / 10.4 x 4.4 x 9.3 inch
  • Notes

  • Solid state stereo amplifier

    Output power = 2 x 18 Watts continuous power
    Speaker impedance = 4 to 16 Ohms,
    Sensitivity = Phono 2mV, Aux 130 mV, Tuner 130 mV, Tape 230 mV,
    Signal to noise ratio = Phono 60 dB, Aux and Tuner 70 dB,
    Tone controls = bass + 10 dB @ 100 Hz, treble + 10 dB @ 10 kHz

    Inputs =  Phono 1, Phono 2, Tuner and Aux (Tape via tape monitor switch)

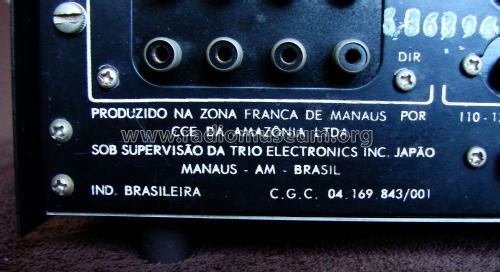

    Assembled in Manaus by CCE (Brazil) under Kenwood licence

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Literature/Schematics (1)
  • Manufacturer literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
