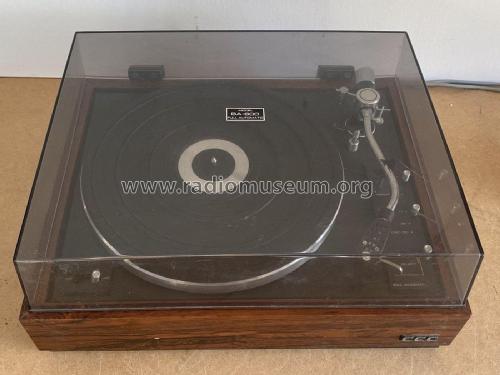

2-Speed Stereo Turntable BA-600

CEC (C.E.C.) Chuo Denki Co.; Tokyo, Saitama

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 267118

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 2-Speed Stereo Turntable BA-600 - CEC C.E.C. Chuo Denki Co.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 435 x 170 x 370 mm / 17.1 x 6.7 x 14.6 inch
  • Notes

  • CEC 2-Speed (33,33 & 45 rpm) Belt Driven Stereo Turntable Model BA-600.
    Platter: 300mm, 1.1Kg aluminum alloy die-cast
    Wow and flutter: 0.1%
    Rumble: -62dB
    Tonearm effective length: 215mm, Overhang: 15mm

    Phono cartridge: MC-20
    Tracking force: 1.8g
    Frequency response: 20Hz to 27kHz +/-3dB
    Replacement stylus: MC 20 S

  • Net weight (2.2 lb = 1 kg)
  • 7.8 kg / 17 lb 2.9 oz (17.181 lb)
  • Mentioned in
  • - - Manufacturers Literature (Instruction / Owners Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
