Compact Disc Player CD3300R

CEC (C.E.C.) Chuo Denki Co.; Tokyo, Saitama

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
CEC (C.E.C.) Chuo Denki Co.; Tokyo, Saitama

Year
2005

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
289317

Schematics

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084119) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084121) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084125) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084130) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084131) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084132) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084133) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084134) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084135) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084137) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084138) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (3)

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084051) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (2)
CEC Sales Brochure

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084053) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (2)
CEC Sales Brochure

Compact Disc Player CD3300R; CEC C.E.C. Chuo (ID = 2084129) R-Player — CEC C.E.C. Chuo Compact Disc Player CD3300R (2)

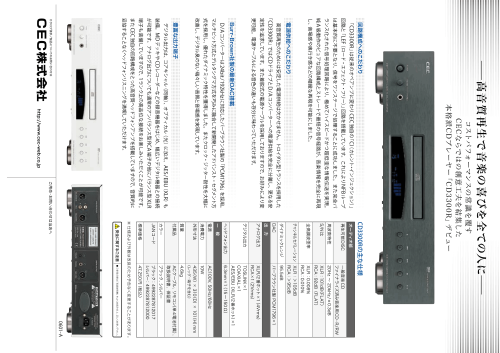

CEC Japanese Flyer

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)

Power type and voltage
Alternating Current supply (AC)

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Compact Disc Player CD3300R - CEC C.E.C. Chuo Denki Co.;

Shape
Book-shelf unit.

Dimensions (WHD)
435 x 101 x 310 mm / 17.1 x 4 x 12.2 inch

Notes
Frontloading Single Compact Disc Player Model CEC CD3300R.
Disc format: CD
Digital converter: Burr Brown PCM1796
Frequency response: 20Hz to 20kHz
Dynamic range: 95.5dB
Signal to Noise Ratio: 92dB
Channel separation: 90dB
Total harmonic distortion: 0.01%
Digital outputs: AES, coaxial, optical
Finish: black, silver
Accessories: CEC RU-208 Remote Control

Mentioned in
- - Manufacturers Literature (Service Manual)
