• Country
• Spain

• Manufacturer / Brand
• Cemtys, S.A.; Madrid

• Year
• 1962 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 315353

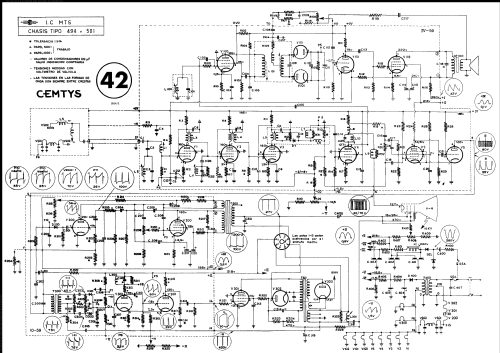

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• from Radiomuseum.org
• Model: Ch= 501 - Cemtys, S.A.; Madrid

• Shape
• Tablemodel, low profile (big size).

• Notes

• Cemtys Ch= 501

  TV B/N con selector rotativo de VHF.
  Subido esquema sin valores de componentes.



• Mentioned in
• Esquemario TV REDE, Tomo I, 1964

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
