• Country
• Italy

• Manufacturer / Brand
• Prestel Elettronica S.R.L.; La Morra

• Year
• 1967

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 121596

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AFZ12 AF116 AF116 AF116 AF116 AF116

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 4,5 Volt

• Loudspeaker
• - only for Earphone!

• from Radiomuseum.org
• Model: Mesureur de champ 6T4G/D - Prestel Elettronica S.R.L.; La

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 205 x 75 x 120 mm / 8.1 x 3 x 4.7 inch

• Notes

• Antenna alignment receiver, one µV meter, VHF-UHF tuner in 4 ranges.
  See also 6T4G/E.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Mentioned in
• FR "Television" No 170 Jan. 1967

• Literature/Schematics (4)

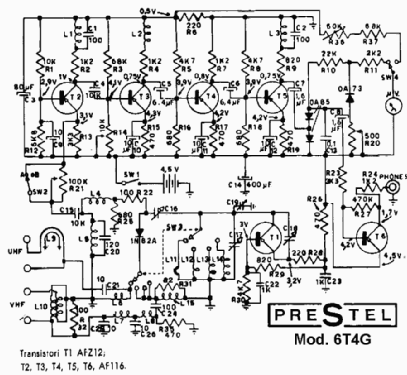

• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.
