Mesureur de champ 6T4G/E

• Country
• Italy

• Manufacturer / Brand
• Prestel Elettronica S.R.L.; La Morra

• Year
• 1967 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 213028

• Picture

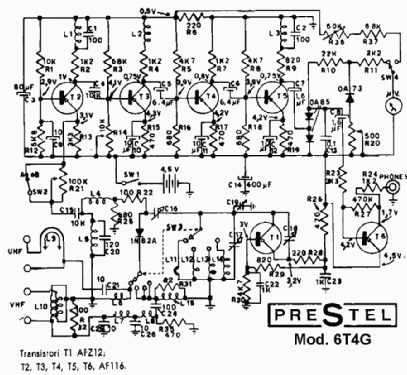

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AFZ12 AF116 AF116 AF116 AF116 AF116

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Dry Batteries / 4,5 Volt

• Loudspeaker
• - only for Earphone!

• from Radiomuseum.org
• Model: Mesureur de champ 6T4G/E - Prestel Elettronica S.R.L.; La

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 205 x 75 x 120 mm / 8.1 x 3 x 4.7 inch

• Notes

• Prestel Mesureur de champ 6T4G/E; Antenna alignment receiver, one µV meter, VHF-UHF tuner 40 - 860 MHz in 4 ranges.
  Known differences to type suffix version >D<: Symmetrical RF input instead of BNC terminals.
  See also 6T4G/D.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 18 models, 5 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Prestel Elettronica S.R.L.; La Morra
