• Country
• Japan

• Manufacturer / Brand
• Central Co. Ltd.; (where?)

• Year
• 1974 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 346927

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: Analog Multimeter CT-630FM - Central Co. Ltd.; where?

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

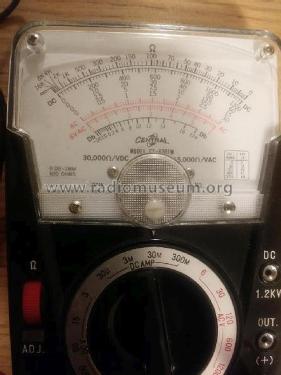

• Central Co. Ltd., analog multimeter CT-630FM

  Ranges :

  DC: 30 kΩ/V,  AC: 15 kΩ/V.

  • V-DC: 3 / 15 / 60 / 300 / 600 / 1200
  • V-AC: 6 / 30 / 120 / 600 / 1200
  • A-DC: 0.03 / 3 / 30 / 300 mA
  • Ω: Rx1 / Rx100 / Rx1k / Rx10k (16 kΩ to 160 MΩ)
  • dB: -20 - +17

  See also Herton CT-630

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
