• Country
• Italy

• Manufacturer / Brand
• CGE, Compagnia Generale di Elettricità; Milano

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121674

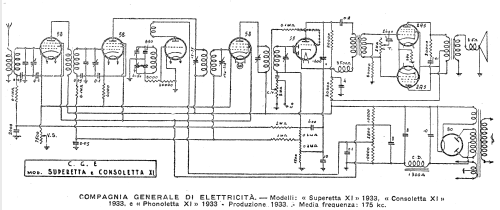

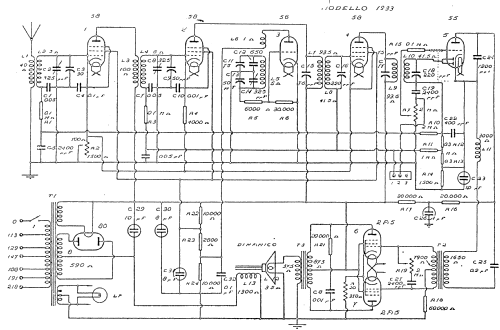

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 58 58 56 58 55 2A5 2A5 80

• Main principle
• Superheterodyne (common); ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Consoletta XI [Mobile Novecento] - CGE, Compagnia Generale di

• Shape
• Console, Lowboy (legs < 50 %).

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
