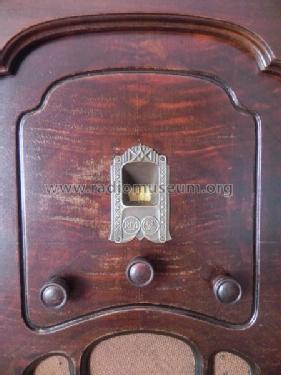

Consolette R-9A
CGE, Compagnia Generale di Elettricità; Milano
- Country
- Italy
- Manufacturer / Brand
- CGE, Compagnia Generale di Elettricità; Milano
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 197492
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Consolette R-9A - CGE, Compagnia Generale di
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Ricevitore consolle modello consolette R-9A uno dei primi modelli della CGE costruiti su licenza RCA americana, riceve solo onde medie.
Modello soprammobile.
- Price in first year of sale
- 2,400.00 lire
- Source of data
- - - Data from my own collection
- Author
- Model page created by Alessandro Staffoni. See "Data change" for further contributors.
