• Country
• Italy

• Manufacturer / Brand
• CGE, Compagnia Generale di Elettricità; Milano

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160454

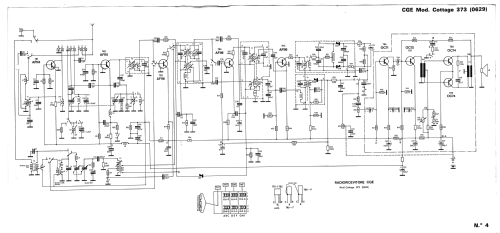

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 OC75 OC71 OC74 OC74

• Main principle
• Superheterodyne (common); ZF/IF 468/67500 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• 6x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cottage RT373 - CGE, Compagnia Generale di

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 325 x 220 x 85 mm / 12.8 x 8.7 x 3.3 inch

• Notes
• Altoparlante 12x7 cm. Gamme d'onda: oltre alle OM e FM anche TV1, TV2. Presa per antenna esterna, per funzionare come autoradio.

• Literature/Schematics (1)
• Angeletti Vol.4 pag.45

• Author
• Model page created by Fabio Masetti. See "Data change" for further contributors.
