• Country
• Italy

• Manufacturer / Brand
• CGE, Compagnia Generale di Elettricità; Milano

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30511

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 6B7 42 80

• Main principle
• Superheterodyne (common); ZF/IF 459 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

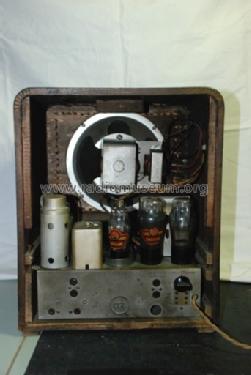

• Model: Musetta - CGE, Compagnia Generale di

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

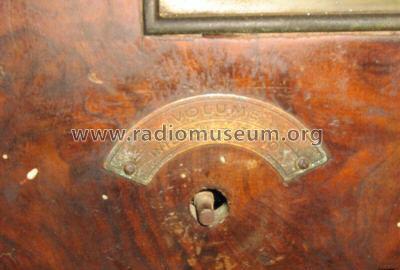

• Controllo di tono. Ingresso per giradischi.

• Price in first year of sale
• 1,050.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• La moderna Supereterodina, Ravalico, 1938 (pag. 358)

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Literature/Schematics (2)
• -- Schematic (La Riparazione degli Apparecchi Radio Delforno-Colciago - Lavagnolo - Italy - 1941)

• Literature/Schematics (3)
• -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
