• Country
• Italy

• Manufacturer / Brand
• CGE, Compagnia Generale di Elettricità; Milano

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80436

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6K7 ECH3 6K7 6H6 EM4 6C5 6C5 6L6 6L6 5Z3

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110, 120, 140, 160, 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

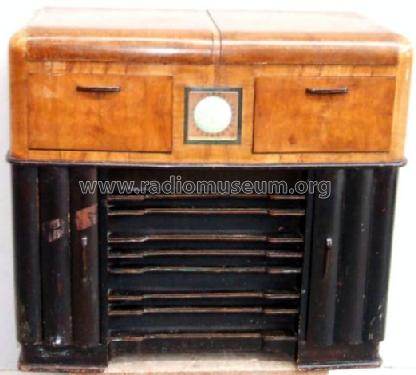

• Model: 1863-RF - CGE, Compagnia Generale di

• Shape
• Console with any shape - in general

• Notes

• 6 gamme d'onda. Con o senza orologio (prezzo rispettivamente 7000 o 6600 lire.

  6 wave bands. Sold with or without clock (price with clock: 7000 ITL).

• Price in first year of sale
• 6,600.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Il Radio Libro, (Ravalico) 8.Ed. (pag. 473)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 323 models, 260 with images and 238 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from CGE, Compagnia Generale di Elettricità; Milano
