- Country
- Italy
- Manufacturer / Brand
- CGE, Compagnia Generale di Elettricità; Milano
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 171708
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 125; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

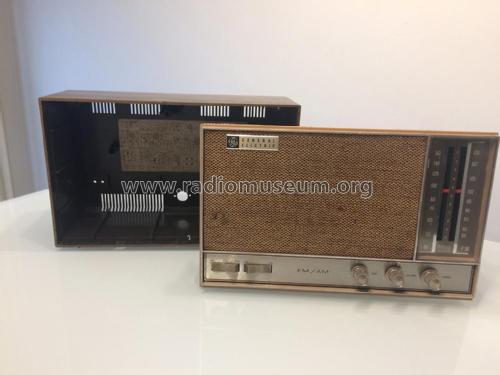

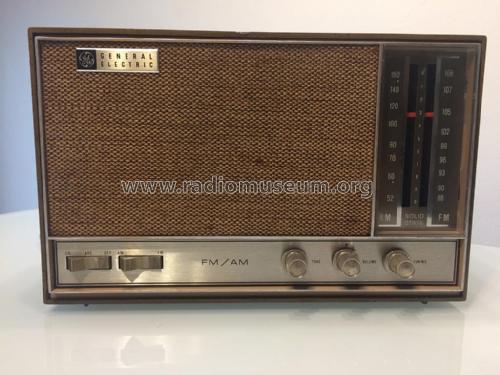

- Model: RT380 - CGE, Compagnia Generale di
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 290 x 180.5 x 130 mm / 11.4 x 7.1 x 5.1 inch
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
- Literature/Schematics (1)

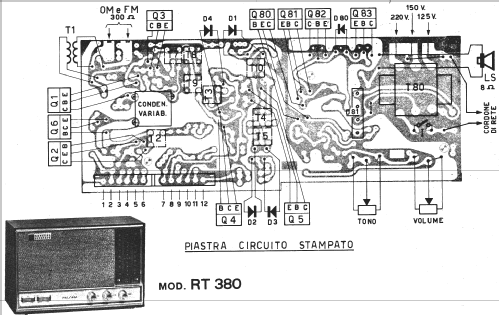

- -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
