- Country
- Italy
- Manufacturer / Brand
- CGE, Compagnia Generale di Elettricità; Milano
- Year
- 1966 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 342507
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- PCC189 PCF86 PC88 PC86 EF183 EF183 PCF82 PCL84 PCF82 PCL84 ECC82 PCL85 PL500 PY83 DY86 A59-16W
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: TS242 - CGE, Compagnia Generale di
- Notes
-
Televisore in bianco/nero con VHF e UHF. Cinescopio con deflessione 110°.
Veniva prodotto con cinescopio da 23 pollici che poteva essere il modello A59-16W oppure il 23BP4. La versione con il cinescopio da 19" usava il modello 19CWP4 oppure il 19AMP4.
- Mentioned in

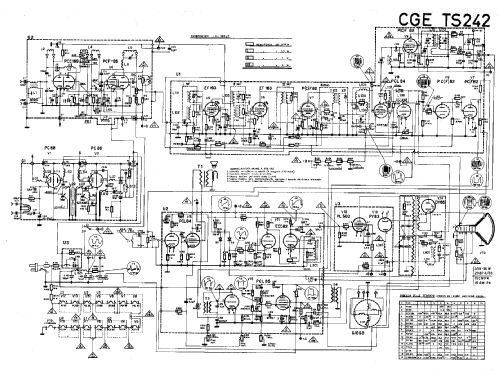

- -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, 1966.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
