Radiosveglia Elettronica RS 7800

CGM elettronica; Genova

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 347866

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Radio with other functions
  • Power type and voltage
  • Alternating Current supply (AC) / 220 & PP3: 1 x 9 clock back-up Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radiosveglia Elettronica RS 7800 - CGM elettronica; Genova
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 200 x 50 x 130 mm / 7.9 x 2 x 5.1 inch
  • Notes

  • Radiosveglia con OM e MF. Tastiera soft touch. Comando di spegnimento programmabile. Ripetizione dell'allarme ogni 9 minuti.
    La batteria da 9 V serve per mantenere le ore dell'orologio e della sveglia.

  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Mentioned in

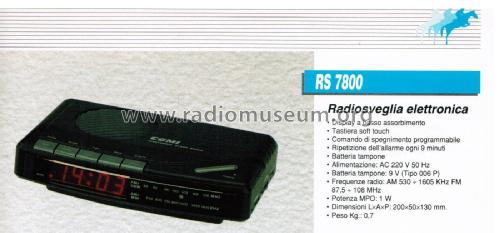

  • -- Original prospect or advert (Catalogo originale CGM.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
