- Country
- United States of America (USA)
- Manufacturer / Brand
- Challenger Amplifier Co. (Bogen); New York, NY / Paramus, NJ
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153463

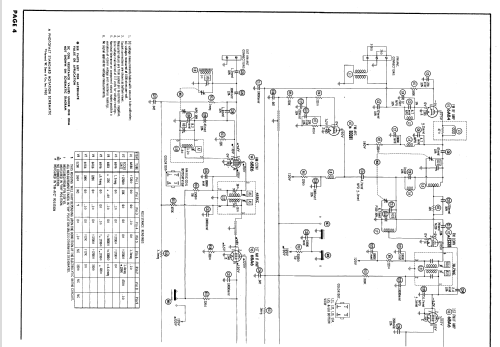

Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: TC200A - Challenger Amplifier Co. Bogen
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 15 x 10 x 4 inch / 381 x 254 x 102 mm
- Notes
-
The Challenger Model TC200A is an AC operated 8 Tube FM-AM Receiver.
Model TC200 complete with cabinet.
- Net weight (2.2 lb = 1 kg)
- 16 lb 0 oz (16 lb) / 7.264 kg
- Price in first year of sale
- 129.50 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-60, Set 470, Folder 4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
