- Country
- United States of America (USA)
- Manufacturer / Brand
- Champion Radio Labs (Champion Radio Mfg.); Lakewood, OH
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 126814
-
- Brand: Monarch
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 42 early - Champion Radio Labs Champion
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
- Other Models
-
Here you find 64 models, 15 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Champion Radio Labs (Champion Radio Mfg.); Lakewood, OH
Forum contributions about this model: Champion Radio Labs: 42 early
Threads: 1 | Posts: 2

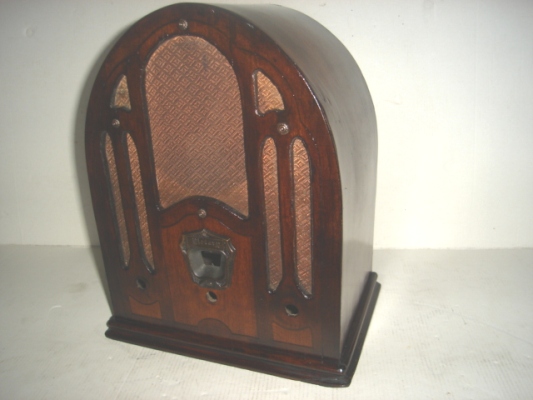

Salve, sto tentando di rirarare una cupoletta americana che monta le valvole 58 57 47 80 , sulla mascherina della scala numetica vi è la scritta VICTORY, che dovrebbe essere una denominazione della CHAMPION RADIO. Poichè il circuito elettrico è stato fortemente manomesso ( anche nella sua semplicità) avrei bisogno dello schema per riporetarlo all'origine.
Attachments
- modello sconosciuto (79 KB)

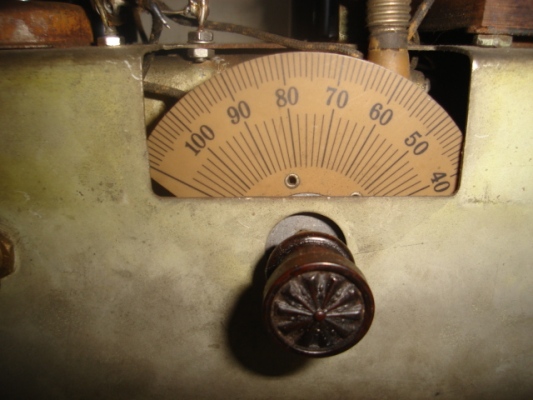

- interno Victory (89 KB)

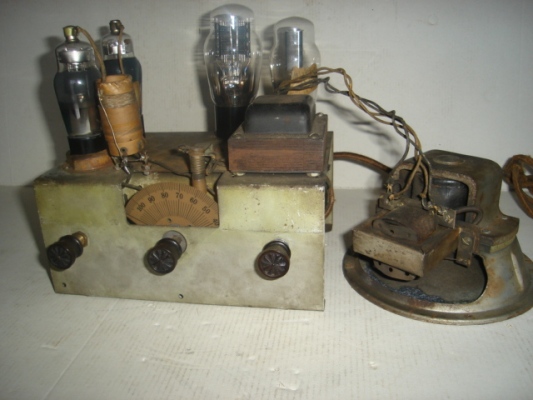

- Telaio Victory (82 KB)
Antonio Maida, 14.Apr.08
