- Country
- Great Britain (UK)
- Manufacturer / Brand
- Champion Electric, Newhaven / Seaford
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 102096

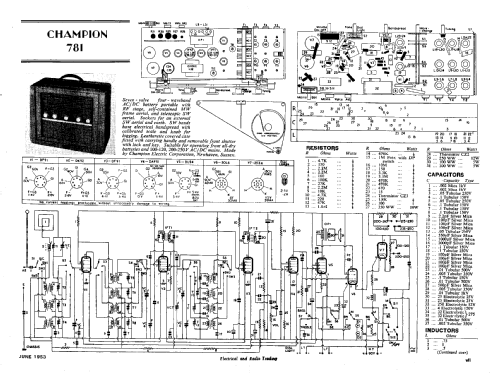

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / 100-120/200-250 / 90 & 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 781A - Champion Electric, Newhaven /
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- 4 Radio bands. MW, SW1 56-100m, SW2 31-55m, SW3 16-30m. Model 781B has LW band.
- Literature/Schematics (1)
- -- Original-techn. papers. (Paul Stennings CD Vol 1 & 2)
- Author
- Model page created by Mario Coelho. See "Data change" for further contributors.
