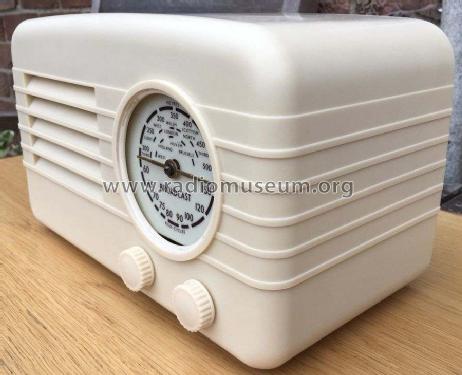

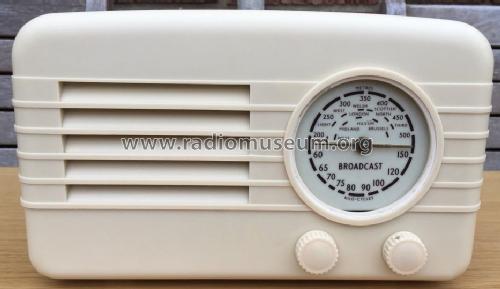

Champion TRF784
Champion Electric, Newhaven / Seaford
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Champion Electric, Newhaven / Seaford
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79350
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Valves / Tubes
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Champion TRF784 - Champion Electric, Newhaven /
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11 x 6 x 6 inch / 279 x 152 x 152 mm
- Source of data
- Radio! Radio!
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
