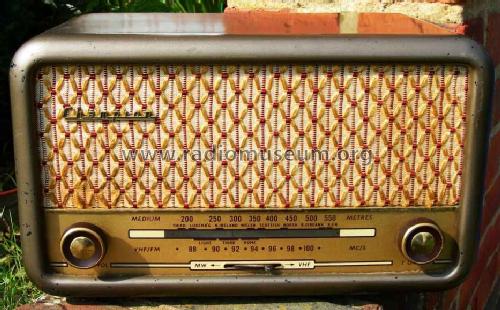

Fidelo 878
Champion Electric, Newhaven / Seaford
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Champion Electric, Newhaven / Seaford
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127512
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Fidelo 878 - Champion Electric, Newhaven /
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- Same chassis as model 881.
- Price in first year of sale
- 14.00 GBP
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Trader Sheet 881. Paul Stennings CD Vol 1
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
