• Country
• Great Britain (UK)

• Manufacturer / Brand
• Champion Electric, Newhaven / Seaford

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127597

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UF41 UF42 UL41 UY41

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

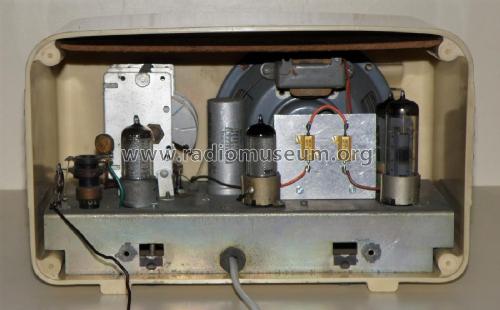

• Model: Minuet 832 [UK Valves] - Champion Electric, Newhaven /

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• This is a later version of model 784M. There is also a version using US-valves (U...series) as used in 784B.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Paul Stennings CD Vol 2

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
