• Country
• Great Britain (UK)

• Manufacturer / Brand
• Champion Electric, Newhaven / Seaford

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127517

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH42 UBF80 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

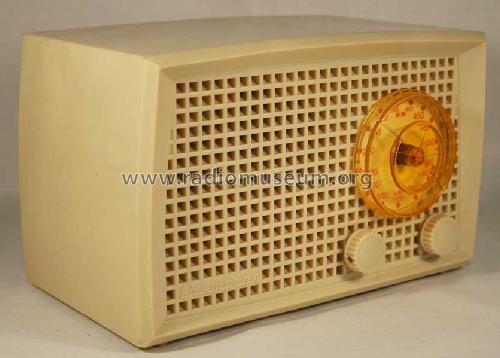

• Model: Serenade 825 - Champion Electric, Newhaven /

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Produced in 4 different pastel colours: Green, Blue, Cream, Red.

• Price in first year of sale
• 9.00 GBP

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Trader Sheet 118. Paul Stenning CD Vol 1.

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
