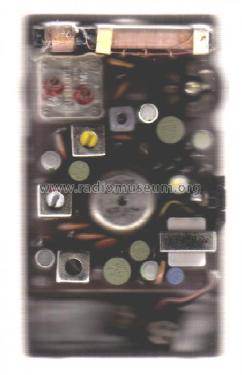

6 Transistor 6502 vertical
Channel Master Corp.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Channel Master Corp.; USA
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 106584
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 6 Transistor 6502 [vertical] - Channel Master Corp.; USA
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 64 x 105 x 35 mm / 2.5 x 4.1 x 1.4 inch
- Notes
-
Metal front grille.
Model identical to Sanyo TH-600
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 11-59, Set 462, Folder 5)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
