8 TR Deluxe 6514

• Country
• United States of America (USA)

• Manufacturer / Brand
• Channel Master Corp.; USA

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106583

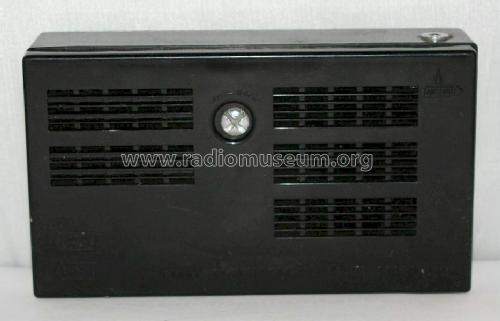

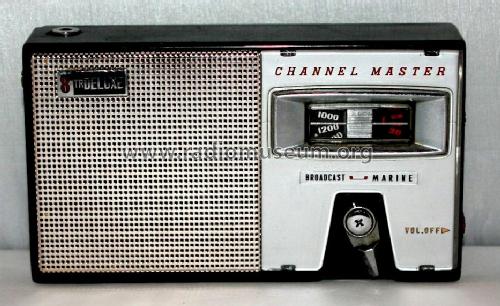

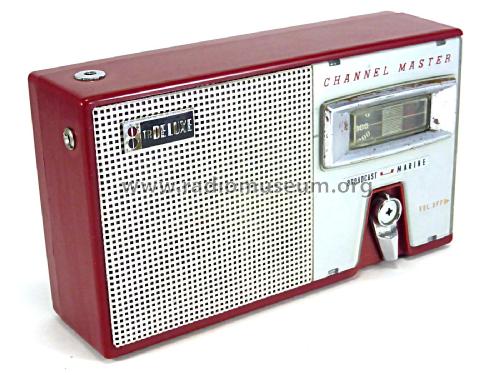

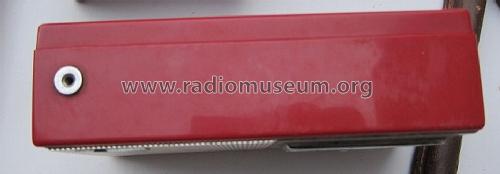

• Picture

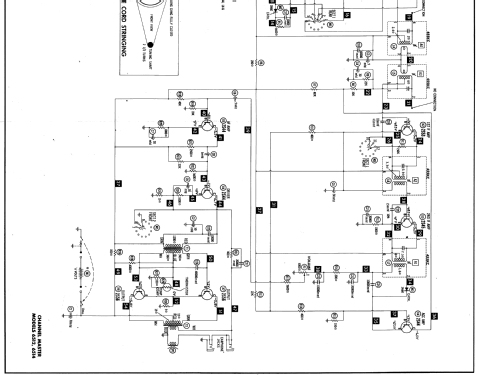

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2S60 2S53 2S45 2S44 2S44 2S44 2S56 2S56

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.62 inch = 6.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 8 TR Deluxe 6514 - Channel Master Corp.; USA

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 156 x 88 x 47 mm / 6.1 x 3.5 x 1.9 inch

• Notes

• Channel Master 8 TR Deluxe 6514;
  AM/BC & Marine band, compare with most similar Sanyo 8S-P2. Battery operated transistorized portable AM receiver. Sams photofact set 485 folder 6 date 5-60 features the Channel Master models 6512 and 6514 as the same schematic.

  Made in Japan

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)

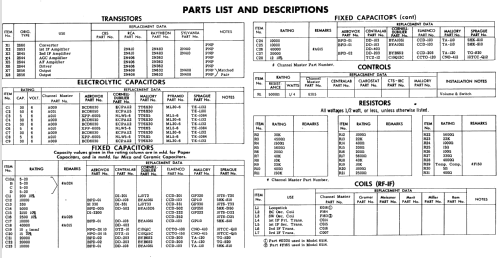

• Photofact Folder, Howard W. SAMS (Set 485 folder 6 date 5-60)

• Literature/Schematics (2)
• Collector's Guide To TrR1 Bunis trans.94 (Model info and image on page 61)

• Literature/Schematics (3)
• Photofact TSM Transistor Radio Series SAMS (TSM-7 (December,1960))

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
