- Country
- United States of America (USA)
- Manufacturer / Brand
- Channel Master Corp.; USA
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145117
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: 6532 - Channel Master Corp.; USA
- Shape
- Tablemodel, with any shape - general.
- Notes
- The Channel Master Model 6532 is an AC/DC Operated 5 Tube AM Superheterodyne Receiver.
- Literature/Schematics (1)

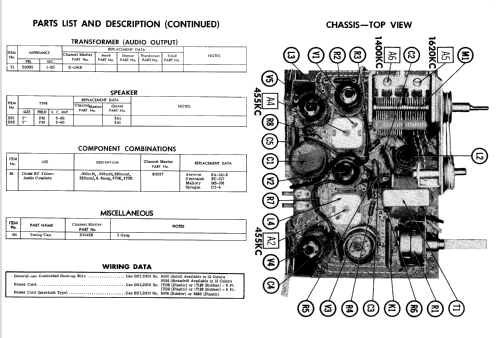

- Photofact Folder, Howard W. SAMS (Date 1-63, Set 628, Folder 5)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
