• Country
• United States of America (USA)

• Manufacturer / Brand
• Channel Master Corp.; USA

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90567

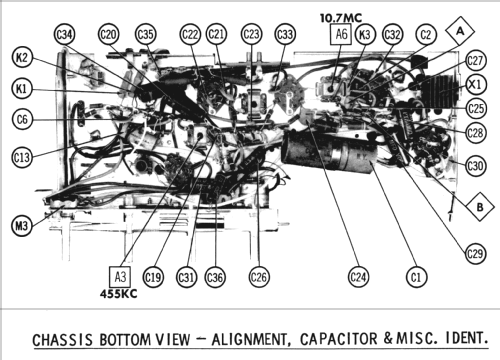

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• HCC85 12BA6 12BE6 12BA6 14GT8 50C5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

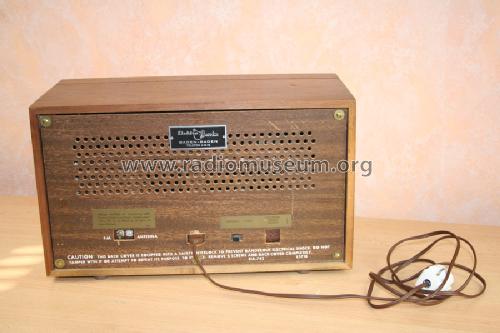

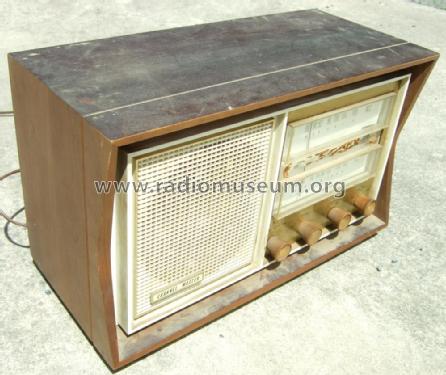

• Model: 6535 - Channel Master Corp.; USA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15 x 9 x 7 inch / 381 x 229 x 178 mm

• Notes
• MPX stereo out.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 24, 1964

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
