- Country
- United States of America (USA)
- Manufacturer / Brand
- Channel Master Corp.; USA
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 135697
Sams photofact set 511 folder 6 date 12-60.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: 6610 - Channel Master Corp.; USA
- Shape
- Chassis only or for «building in»
- Notes
- Diode Rectifier.

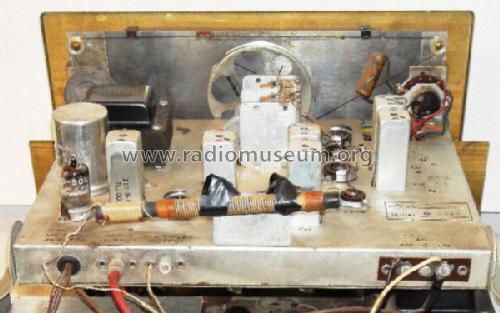

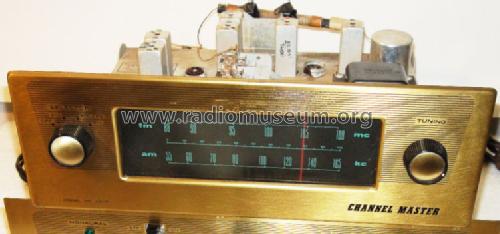

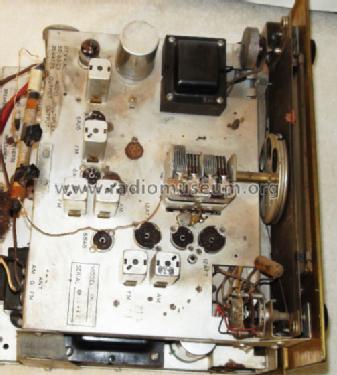

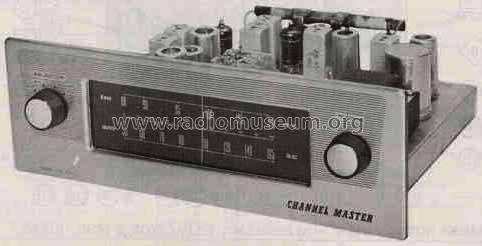

The Channel Master Model 6610 is a AC Operated 7 Tube AM-FM Tuner.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-60, Set 511, Folder 6)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
