6TR 6506A
Channel Master Corp.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Channel Master Corp.; USA
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 260175
Front swiveled right
Front swiveled left
Back
Label
Inside view
Sanyo transistor 1
Sanyo transistor 2
eBay item number:354785138609
eBay item number:354785138609
eBay item number:354785138609
eBay item number:354785138609
eBay item number:354785138609
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / AA: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 6TR 6506A - Channel Master Corp.; USA
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 150 x 80 x 45 mm / 5.9 x 3.1 x 1.8 inch
- Notes
-
This transistor radio model Channel Master 6506A is made by Sanyo for Channel Master Corp.(USA). It is similar to Sanyo 6C-11.
Later it became Type 6506B.

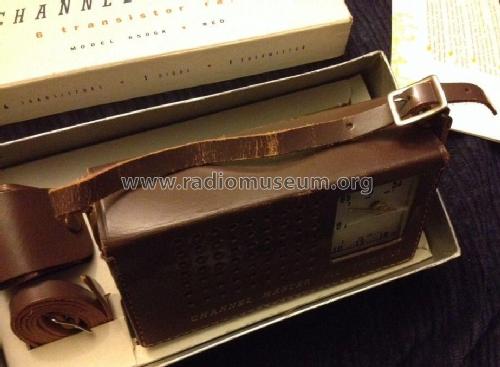

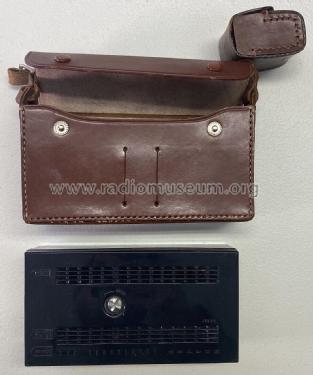

Black and silver color, sold with accessories: Carrying case and strap, earphone with leather pouch, US$ 22.95 (1968). You see the differences by comparing with the photos of Joachim Gittel (Jogi), for instance for the aerial connection.
Made in Japan
- Literature/Schematics (1)
- Collector's Guide To TrR1 Bunis trans.94 (1960 date of manufacture on page 60)
