• Country
• United States of America (USA)

• Manufacturer / Brand
• Channel Master Corp.; USA

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239356

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

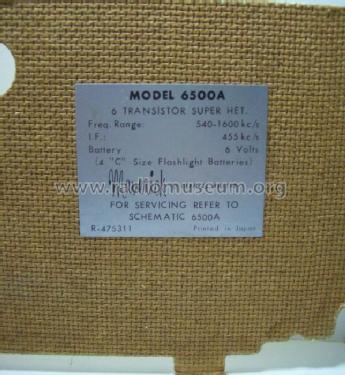

• Model: Maverick 6500A - Channel Master Corp.; USA

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 6.5 x 4 inch / 254 x 165 x 102 mm

• Notes

• Schematic 6500A. See the similar "Six Transistor" 6500 which uses the 6500 chassis.

  Made in Japan 704

• Author
• Model page created by Dennis Earl. See "Data change" for further contributors.
