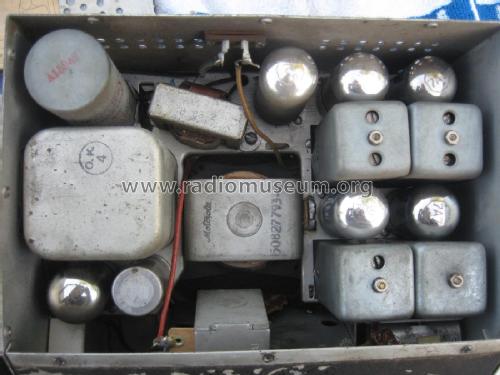

985200
Chevrolet Div.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Chevrolet Div.
- Year
- 1939 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 35245
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 262.5 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 985200 - Chevrolet Div.
- Notes
- Vibrator for +B.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Literature/Schematics (1)
- Riders 10-5, 6
