- Country
- Italy
- Manufacturer / Brand
- Chinaglia Dino Elettrocostruzioni; Belluno
- Year
- 1966
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 112298
FS1966 Heft 23
FS1966 Heft 23
- Wave bands
- - without
- Power type and voltage
- Dry Batteries
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

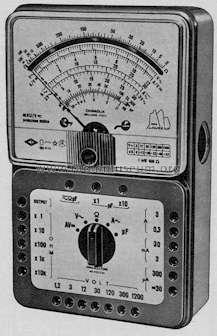

- Model: Lavaredo - Chinaglia Dino
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 95 x 150 x 50 mm / 3.7 x 5.9 x 2 inch
- Notes
- AC/DC Multimeter, 40.000 Ohm/V, class 1,5, capacitor test 100pF to 1.000µF, volts 250mV/1,2V to 1.200V; 30µA/300µA to 3A, resistor: 0 to 200MOhm.
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Price in first year of sale
- 148.00 DM
- Mentioned in
- Funkschau (1966 Heft 23 Seite 1925 Advert)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
