Microtester
Chinaglia Dino Elettrocostruzioni; Belluno
- Country
- Italy
- Manufacturer / Brand
- Chinaglia Dino Elettrocostruzioni; Belluno
- Year
- 1955 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 305645
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material

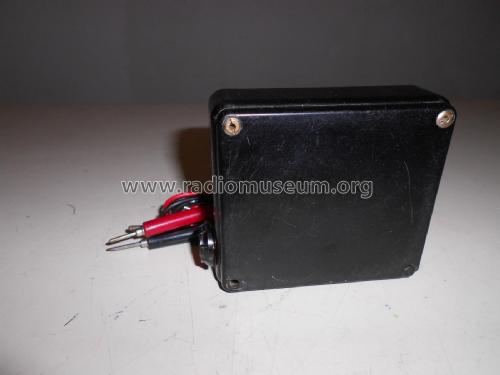

- Bakelite case
- from Radiomuseum.org
- Model: Microtester - Chinaglia Dino
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 95 x 125 x 45 mm / 3.7 x 4.9 x 1.8 inch
- Notes
-

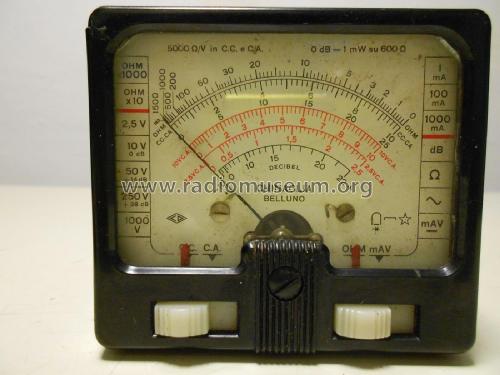

5000 Ω/V in C.C. e C.A.
0 dB = 1 mW su 600 Ω.
Misure:- due portate in Ohm: x10 e x1000;
- cinque portate V cc e ca: 2,5 - 10 - 50 - 250 - 1000;
- tre portate mA: 1 - 100 - 1000;
- dB: -10 +22.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
