Chunlei 春雷 502
Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174485
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 4.5 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

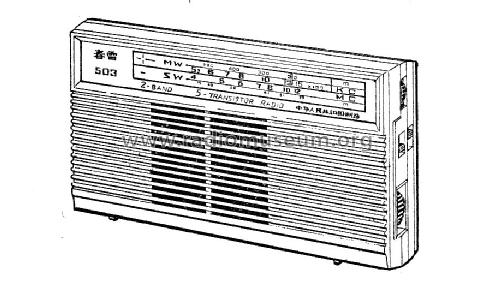

- Model: Chunlei 春雷 502 - Shanghai No.3 上海无线电三厂
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 235 x 130 x 55 mm / 9.3 x 5.1 x 2.2 inch
- Notes
- The models 502 and 503 share the same documentation with the same schematic. Who can tell the difference? Brand Chunlei 春雷 means "Spring Thunder".
- Literature/Schematics (1)

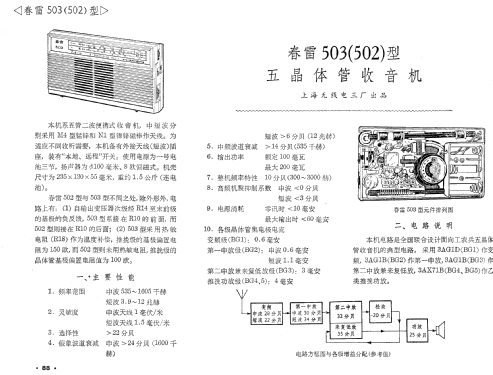

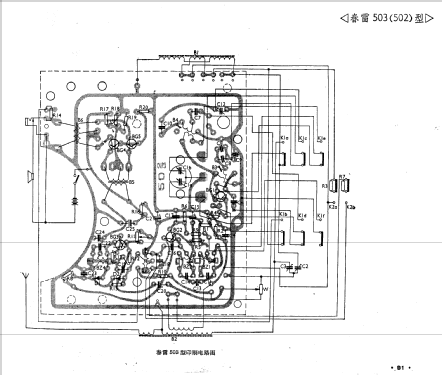

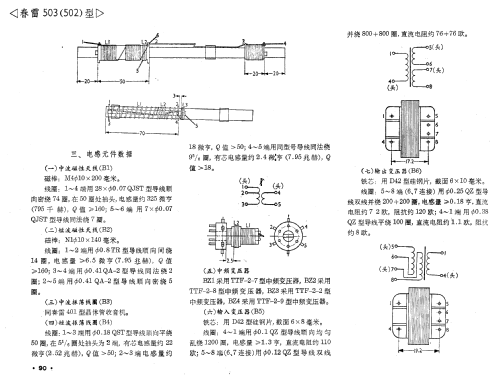

- 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 88.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
