• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• CIE, Chung Instrument Electronics Industrial Co. Ltd.; New Taipei

• Year
• 1984 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 347550

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• 2SC1959 BSR14 BSR14 BSR14 BC847 KAD7001 CD4053 CD4069 CD4518 NE555 NJU7201 TLC271 1N4007 1N4148 BAS32L unknown_Display

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / PP3: 1 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Automotive Multimeter 128 - CIE, Chung Instrument

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• CIE, Chung Instrument Electronics Industrial Co. Ltd.,

  Automotive Multimeter 128

  Autorrange 3-¾ digit LCD display with 33 segment bar-graph.

  Range Selection, Display Hold, Autopower-Off, Diode Test, Continuity Check (beeper)

  Ranges:

  • Voltage
  • Current
  • Ohms
  • Diode
  • Dwell
  • RPM
  • Temperature
  • Condenser

  Also sold as Hibok-93

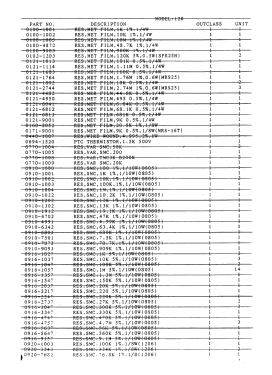

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
