• Model: Digital Clamp Meter 266 - CIE, Chung Instrument

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.7 x 9 x 1.5 inch / 69 x 229 x 38 mm

• Notes

• CIE, Chung Instrument Electronics Industrial Co. Ltd.,

  Digital Clamp Meter 266

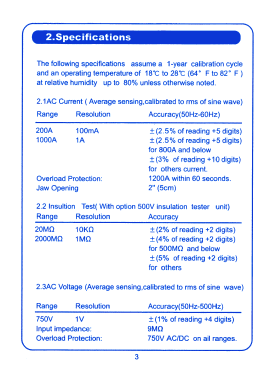

  Clamp Ø50 mm; 3-½ digit LCD display (max. indication 1999).

  Ranges:

  • V_DC: 1000
  • V_AC: 750
  • A_AC: 200 - 1000
  • R(Ω): 200 - 20k
  • Insulation test with optional 500V unit: 20MΩ - 2000MΩ
  • Continuity Buzzer

  The schematic indicates a JRC9201 while the parts list shows an ICL7106. Comparing with other ICL7106 models possibly the parts list is correct.



• Net weight (2.2 lb = 1 kg)
• 0 lb 11 oz (0.688 lb) / 0.312 kg
